About this dataset
- ·Reference snapshot, refreshed periodically
- ·1K rows (live estimate)
- ·Resolution: snapshot
- ·All 36 states & UTs — subset at checkout
- ·Exports built fresh from the live database at purchase time
- ·Coverage report with every known gap disclosed (below)
₹2,499
Leave empty for all currently covered states. A subset is priced pro-rata (min 40%).
Enter your email above to check out as a guest, or continue to create a free account (purchases saved in My Products). Card payments via Stripe; pro-forma/bank transfer for institutions.
Sold by India Energy Atlas · CC-BY license · cite: India Energy Atlas (energymap.in), CC BY 4.0
Enterprise delivery
Need this landing in Snowflake, S3, or GCS on a schedule — or under an enterprise license with custom windows? We set up direct cloud delivery for enterprise customers.
Pro-forma invoicing and bank transfer available for institutional buyers.

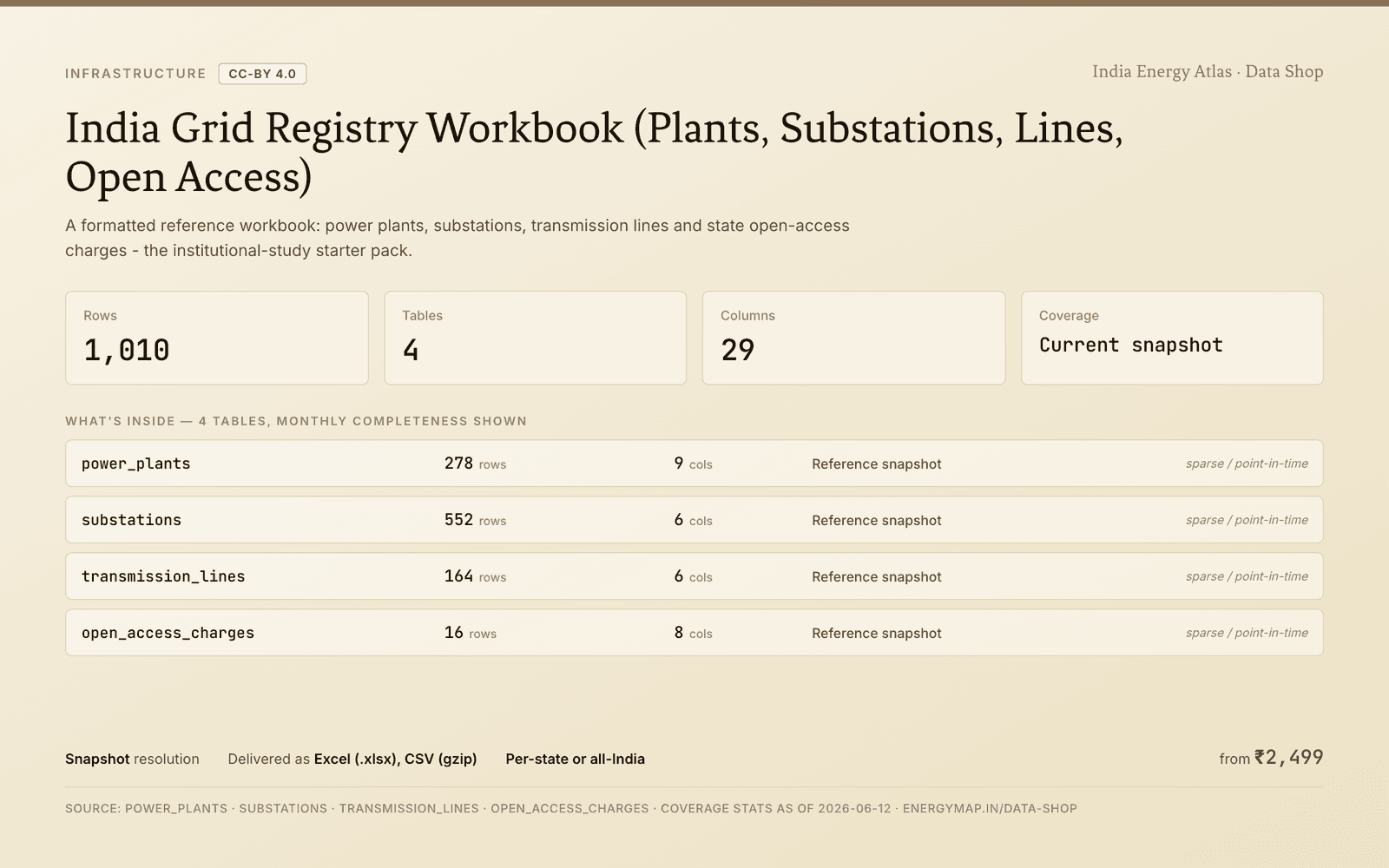

About this dataset
Snapshot registry of India's grid hardware and access economics: central plant catalogue (fuel, capacity, location, owner), major substations (voltage, MVA, location), transmission backbone (corridors, kV, length) and per-state open-access charges (CSS, additional surcharge, wheeling, transmission). Shipped as a formatted multi-sheet workbook in the style institutional consumers asked for, plus raw CSVs.
Coverage — measured, not promised
Static reference snapshot, refreshed periodically (not a time series). Compiled from CEA, Grid-India, state utilities and OpenStreetMap.
Known holes — disclosed, never hidden
No multi-day gaps detected inside the covered window at the last weekly scan.
- power_plants
- 273 rows
- static snapshot — no time axis
- substations
- 552 rows
- static snapshot — no time axis
- transmission_lines
- 164 rows
- static snapshot — no time axis
- open_access_charges
- 16 rows
- static snapshot — no time axis
Coverage stats generated 2026-09-28 by the weekly sample-assets pipeline · 1,005 total rows
Data dictionary
| Column | Type | Description |
|---|---|---|
| plant_name | text | Plant name |
| fuel_type | text | Primary fuel |
| capacity_mw | float | Installed capacity, MW |
| latitude | float | WGS84 |
| longitude | float | WGS84 |
| state | text | State |
| commission_year | int | Commissioning year |
| owner | text | Operator/owner |
| status | text | Operational status |
| Column | Type | Description |
|---|---|---|
| name | text | Substation name |
| state | text | State |
| latitude | float | WGS84 |
| longitude | float | WGS84 |
| voltage_level | text | Voltage class |
| capacity_mva | float | Transformation capacity, MVA |
| Column | Type | Description |
|---|---|---|
| from_substation | text | Origin substation |
| to_substation | text | Destination substation |
| voltage_kv | float | Line voltage, kV |
| length_km | float | Route length, km |
| capacity_mva | float | Thermal capacity, MVA |
| operator | text | Operator |
| Column | Type | Description |
|---|---|---|
| state | text | State |
| voltage_level | text | Connection voltage class |
| css_rs_kwh | float | Cross-subsidy surcharge, Rs/kWh |
| additional_surcharge_rs_kwh | float | Additional surcharge, Rs/kWh |
| wheeling_charge_rs_kwh | float | Wheeling charge, Rs/kWh |
| transmission_charge_rs_kwh | float | Transmission charge, Rs/kWh |
| effective_date | date | SERC order effective date |
| source_order | text | SERC order reference |
Caveats — read before you buy
- Snapshot data; commissioning/retirement since the snapshot date may be missing.
- Substation geometry partially OSM-derived; verify before construction use.
License & citation
CC-BY
Cite as: India Energy Atlas (energymap.in), CC BY 4.0
Frequently asked
What exactly do I get when I buy India Grid Registry Workbook (Plants, Substations, Lines, Open Access)?
A one-time export built fresh from the live India Energy Atlas database at purchase time, delivered as xlsx, csv_gz via a private tokened download link, with a per-state/per-month coverage report and a data dictionary included. Static reference snapshot, refreshed periodically (not a time series). Compiled from CEA, Grid-India, state utilities and OpenStreetMap.
How is this licensed?
CC BY 4.0 — use it anywhere, including published work, with attribution: "India Energy Atlas (energymap.in), CC BY 4.0".
How fresh is the data and how are gaps handled?
The catalog shows live freshness straight from the source tables (15-minute server cache). Exports are built at purchase time, and every known multi-day gap is disclosed in the coverage report on this page — we never sell around a hole silently.
Can I configure the date range and states?
Yes — the configurator lets you pick the time window, states and format before checkout, and the price scales with the window you pick.
Do you offer pro-forma invoices or bank transfer?
Yes. Institutional buyers can request a pro-forma invoice and pay by bank transfer; the order unlocks automatically once payment is marked received. Stripe checkout (cards/UPI) is available for self-serve purchases.
